How Do You Program a B&D Garage Door Remote?

B&D remote programming trips people up for one reason: the brand has sold several generations of opener and remote under similar names, and the steps that suit one do not always suit the next. Once you know which opener is on the ceiling and which radio system your remote uses, how to program a B&D garage remote comes down to a couple of button presses. This guide is the B&D-specific version of our general learn-button method for garage door remotes, and it goes deeper on remote families, coding from another remote and the faults that stop a pairing.

Which B&D opener and remote do you have?

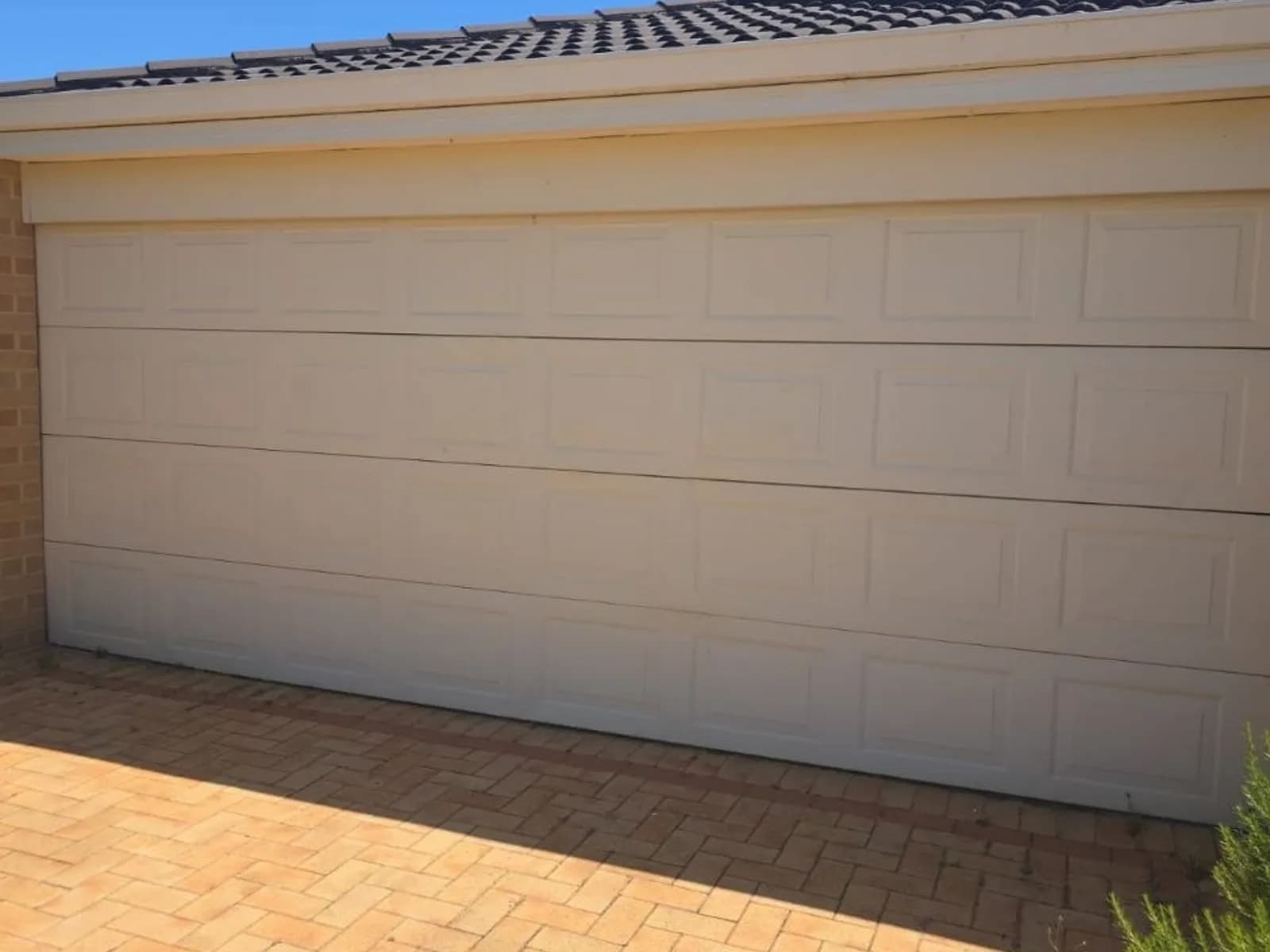

Start with the sticker on the motor. B&D's sectional openers, the ones on Panelift-style doors, carry the Controll-A-Door name and a model code beginning with SDO, short for sectional door opener. The SDO-3v2 is the Controll-A-Door S, the SDO-6v2 and its v3 update sit behind the Controll-A-Door Secure, and later units carry higher numbers. Roller door openers for Roll-A-Door curtains use RDO codes instead, and the motor sits inside the drum at one end of the door rather than on a ceiling rail. Write the full code down, including the version suffix, because a v2 and a v3 can take different remotes.

Now turn over the remote. B&D remotes come in families: the older TB5, the four-button TB6, the newer three-button TB7, plus the WTB-6 and WTB-8 wireless wall buttons that pair with the TB6 and TB7 generations respectively. Under the family name is the radio system, either Tri-Tran or Tri-Tran+. Tri-Tran+ is the later system and, as a rule, an opener built for one system does not learn a remote from the other, though some later openers accept both. If you have a remote that works, buy the same family and radio name and you avoid the mismatch entirely. Our B&D and other replacement remotes sorted by opener list the family each one matches.

Where is the code button on a B&D opener?

On Controll-A-Door sectional units the coding button is on the motor head, usually on the control panel near the courtesy light, marked Set, Code or with a small remote symbol and an LED next to it. Some models put it under a flip-down cover with the travel-limit buttons, so if you cannot see it, look for a plastic flap. The latest units with a screen move coding into an on-screen menu instead of a dedicated button, and the wall control walks you through it. On roller door openers the button is on the motor housing inside the drum, reached from the side of the curtain with a torch and a step ladder. Read the labels before pressing anything: the button that sets the door's travel limits usually sits right beside the one that codes remotes.

How do you program a B&D remote, step by step?

The routine below covers most Tri-Tran and Tri-Tran+ openers. The number of remote presses and the hold time on the opener button change between models, so keep the leaflet that came with the remote open beside you and let it override anything here.

1. Fit a new battery in the remote, even if it is fresh out of the packet. A tired coin cell is the most common reason a good remote will not code.
2. Stand where you can see the opener LED and keep the door path clear, because the door may move as soon as the pairing takes.
3. Press and release the code or set button on the opener. On some models you hold it instead until the LED begins to flash, then let go. Either way the flashing LED means the opener is listening.
4. Within the listening window, press the button on the remote you want to use. Many B&D leaflets then ask for a second press of the same button to confirm; do that if yours does.
5. Watch for the confirmation: the courtesy light flashes, the LED goes steady or out, or the motor gives a short click.
6. Test from the driveway. If the door runs, code any other remotes and wall buttons the same way, one at a time, with a fresh press of the opener button for each.

Can you program a B&D remote from another remote?

Yes, on the Tri-Tran family, and it is the easier route when the opener is up in a roller door drum. Tri-Tran and Tri-Tran+ handsets carry a tiny recessed button on the back, reached with a pen tip or a straightened paper clip, that puts a working remote into teaching mode. The exact order changes a little between the TB5, TB6 and TB7, so use the sequence printed on the new remote's leaflet, but the shape of it is the same.

1. Hold the working remote and the new remote a few centimetres apart with fresh batteries in both.
2. Press the pinhole button on the back of the working remote with a pen tip. Its LED lights or starts flashing.
3. Press the button on the working remote that opens the door, and release it.
4. Press the button on the new remote that you want to use for the door. Its LED flashes to confirm it has taken the code.
5. Walk to the driveway and press the new remote. Some openers need one or two presses before the door responds the first time, which is normal for a rolling-code system syncing a new handset.

This only works between remotes of the same radio system, so a Tri-Tran+ remote cannot teach an old Tri-Tran handset or the other way around. It also adds the new remote alongside the old one; it never replaces it. If the working remote is one you are replacing because it went missing, skip this method and clear the opener's memory instead.

How do you program a B&D 4-button remote?

The TB6 and the older TB5 are four-button remotes, and each button is its own channel. The opener learns one button per coding cycle, so decide which button will run the door, code that one, and leave the others alone unless you have a second door or a gate motor for them. Most people who tell us a new B&D remote will not work have coded the top button and are pressing the second one. Once you have coded a button, a dab of nail polish or a small sticker saves the family from guessing.

Why won't a B&D remote pair?

When a B&D remote refuses to code, it is almost always one of these, listed in the order we find them on Perth driveways.

• Tri-Tran and Tri-Tran+ mismatch. The opener is one radio system and the remote is the other. Compare the name on the back of the new remote with the name on a remote that works, or with the opener's sticker.
• Wrong family for the opener version. A remote sold for an SDO-6v2 may not suit an earlier Controll-A-Door, and vice versa. The model code and version suffix on the motor settle it.
• Flat battery in the new remote. Check it before anything else; a remote that has sat on a shelf through summer is often already weak.
• The opener button was held instead of pressed, or pressed instead of held. The two actions do different things on B&D units, and the leaflet says which yours needs.
• Only one press of the remote when the leaflet asked for two. The LED flashes, nothing confirms, and the listening window closes.
• Memory full. Every B&D opener stores a set number of remotes, and a house that has changed hands twice can hit the limit. Clear the memory and re-code the remotes you still have.
• You are pressing a button you never coded, which on a four-button remote is easy to do.
• The receiver has failed. If every remote has stopped, including ones that worked last week, the fault is in the opener's radio board or antenna wire, and no amount of coding fixes it.

If a remote that has worked for years just stopped and nobody has been near the code button, run through our checks for a garage door remote that has stopped working before you re-code anything; the answer is usually the battery or the antenna.

How do you clear a B&D opener's remote memory?

Clearing the memory is the right move when a remote is lost or stolen, when a tenant has left with one, or when the memory is full. On most B&D openers with a physical code button you hold that button down, well past the point where a normal pairing would start, until the LED goes out or the courtesy light flashes, then release it. Every remote and wireless wall button is forgotten at once. On units with a screen, the delete option is in the remotes section of the menu. The hold time differs between models, so check the manual, and gather every remote, wall button and car button the household still uses first, because each needs coding again afterwards. Do it the same day if a remote left in a stolen car; the internal door from most garages is not deadlocked.

When is it worth having us code it or repair the opener?

If the code button is easy to reach and the new remote matches the family and radio system, B&D remote programming is a fair job to do yourself. It stops being one when the motor is inside a roller door drum on a high ceiling, when the memory needs clearing and re-coding for a household with five remotes, when two or three remotes bought online have all failed to pair, or when the opener predates the Tri-Tran system altogether. We carry B&D-compatible remotes in the vans and code B&D remotes on your driveway in one visit, same day across Perth, with no call-out fee and the price agreed before we start.

If the coding routine does nothing at all, the receiver board or antenna is the more likely fault, and that becomes an opener repair rather than a remote job; we tell you which before touching the unit. And if the door itself is the problem rather than the remote, we supply, install and service B&D garage doors across Perth, from Roll-A-Door curtains to Panelift sectionals.
