How Do You Program a Steel-Line Garage Remote?

Steel-Line remote programming takes about a minute once two things are settled: where the code button is on your opener, and whether the remote in your hand belongs to the same radio family as the motor. The second point is where most people come unstuck, because Steel-Line has sold more than one code system and the remotes look similar in the packet. This guide covers the SD800 and SD1200 sectional openers, the roller door motors, the ZT-07, DM01 and HT3 remote families, the memory clear, and the reasons a remote refuses to pair. We supply, install and service Steel-Line openers across Perth, so this is the routine we follow on the driveway.

Which Steel-Line opener and remote do you have?

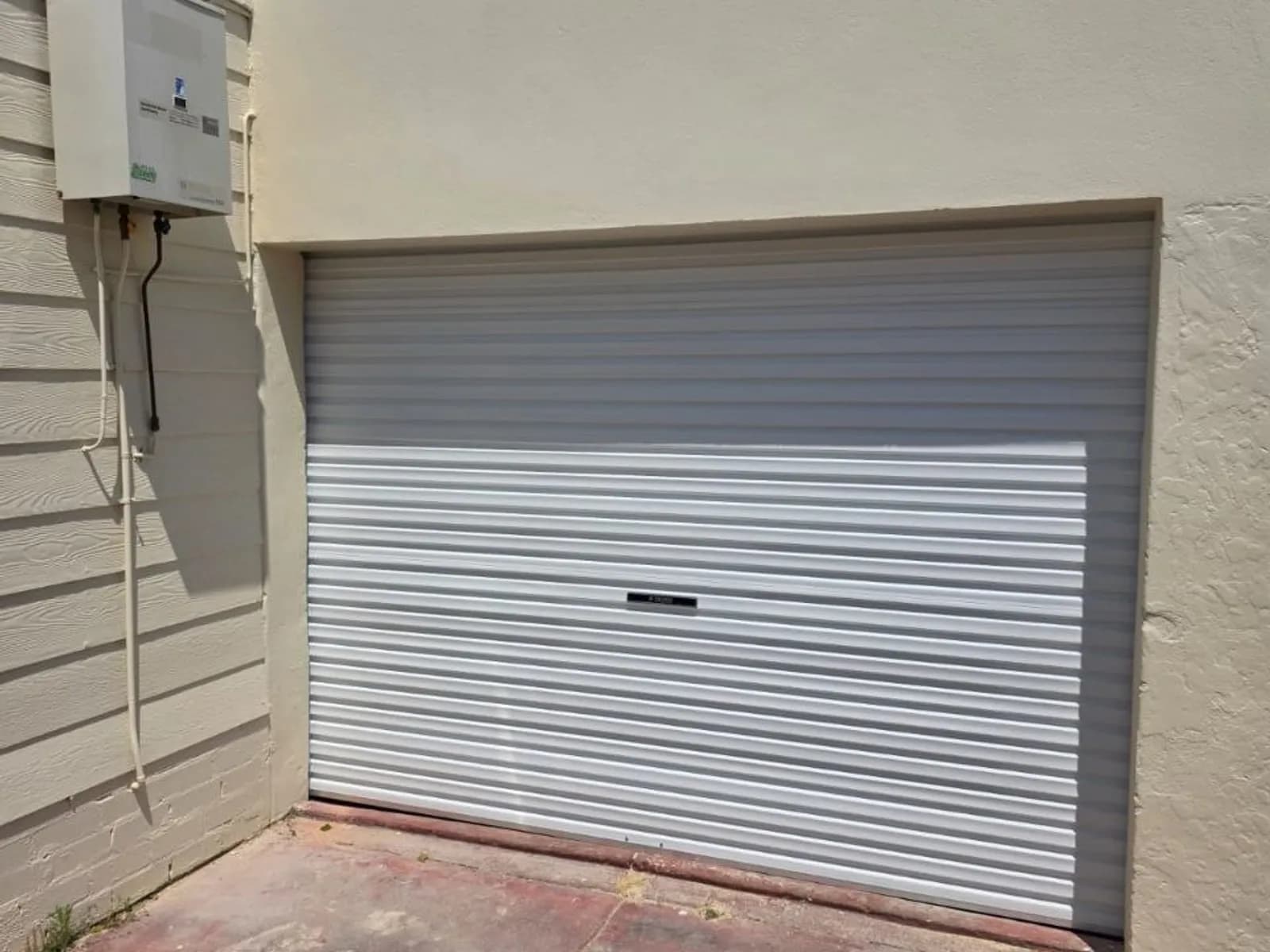

Start with the sticker on the motor, not the badge on the door. Steel-Line is known in Perth first as a door maker, and its openers are usually sold with the Steel-Line sectional and roller doors they drive, but plenty of Steel-Line doors were fitted with someone else's motor, and the door brand tells you nothing about the remote. The sectional openers are the SD800 and SD1200, a ceiling-mounted head unit on a rail, the higher number being the stronger unit for larger or heavier panels. The roller door motors, models such as the RD800 and the older ST50EVO series, sit on the axle at one end of the curtain roll, inside the drum.

Then turn the remote over. The model name is printed on the back or inside the battery cover, and it puts the remote into one of two families.

• ZT-07: the four-button rolling-code hand transmitter on 433 MHz, supplied with most current Steel-Line openers and the remote most people mean when they search for Steel-Line remote programming.
• DM01: a compact transmitter from the same 433 MHz family, coded with the same steps as the ZT-07 and happy on the same openers.
• ZTWB: the wireless wall button from that family. It pairs like a remote, one learn cycle at the opener, and is wiped with the remotes when the memory is cleared.
• HT3: a three-button 433 MHz remote from a different code system, found on Boss-branded units and on some openers Steel-Line supplied. It will not pair with a ZT-07 opener, and a ZT-07 will not pair with an HT3 one, even though both say 433 MHz on the label.

If the opener already has a working remote, match its model name and you cannot go wrong. For the two sectional models, the Steel-Line SD800 and SD1200 remote control is the unit we fit. When there is no old remote at all, photograph the motor sticker and send it to us before buying anything.

Where is the code button on a Steel-Line opener?

On the SD800 and SD1200 the code button is part of the small control panel on the head unit, at the back or underside of the housing beside the indicator LEDs. On some units it sits behind the light cover, so if you see LEDs but no buttons, unclip the lens. The panel also carries the buttons that set the door's travel limits, usually marked Set with up and down arrows, and those are the ones to leave alone. Labels have changed between production runs, so read the panel rather than guessing.

On the roller door motors the button is on the motor housing itself, at one end of the curtain roll, and you reach it from inside the garage beside the side track, sometimes under a small rubber or plastic cover. A head torch and a stable step ladder turn it into a two-minute job.

How do you program a Steel-Line remote, step by step?

This is the sequence for a ZT-07 or DM01 remote on a current opener. HT3 remotes use the same idea with their own press pattern, and the leaflet in the packet is the authority on the number of presses for your exact model.

1. Fit a fresh battery in the remote and pull the clear plastic tab out of a new one. A weak or isolated cell looks exactly like a coding failure.
2. Clear people and cars from under the door and stand where you can see the opener's LEDs.
3. Press and release the code button once. The LED beside it lights or starts flashing, and the opener listens for a short window, typically around 30 seconds.
4. Press the remote button you want to use. If the LED does not change, press the same button once more within a few seconds; some Steel-Line leaflets call for a second press to confirm.
5. Watch for the confirmation: the LED flashes and goes out, the courtesy light blinks, or the unit clicks or beeps, depending on the model.
6. Test from the driveway, then from further down the street. A remote that only works up close points to a battery or antenna problem, not a coding one.
7. Repeat the cycle for every other remote, wall button and car. The opener learns one transmitter per cycle.

If the motor above your door turns out not to be a Steel-Line at all, the same learn-button idea applies with different buttons and press counts, and our general guide to programming a garage door remote across the common Australian brands covers B&D, Merlin, ATA, Gliderol and Centurion.

How do you program a Steel-Line 4-button remote?

The ZT-07 is a four-button remote, and each button is its own transmitter with its own channel. The opener learns one button per learn cycle, so code the button you will actually press, and if you want a spare, run a second cycle for it. A remote coded on button one and pressed on button two is the usual story behind a four-button remote that never worked. The other buttons can run a second Steel-Line door, a gate motor on the same code system or a roller door at the back of the block, so once they are coded, mark each one with a label so nobody has to guess.

Why won't a Steel-Line remote pair?

When a Steel-Line remote is not working after coding, or refuses to code in the first place, the cause is nearly always on this list. Work down it in order.

• Wrong family. An HT3 remote will never pair with a ZT-07 opener or the other way round. The frequency matches but the code system does not, and no amount of button pressing changes that.
• The memory is full. Every opener stores a set number of transmitters, and a house that has changed hands a few times can run out. Clear the memory and re-code the remotes you still have.
• A flat battery or an insulating tab still in place. Coin cells lose charge sitting in a warehouse, and a remote left on a dashboard through a Perth summer is often half dead.
• You held the code button instead of pressing it, or pressed a limit button beside it. A long hold wipes the memory and every remote in the house stops at once; re-code each one with a short press.
• The opener is in a service-reminder mode. Some Steel-Line units beep or flash after a set count of door cycles to say the door is due a service. The remotes usually still work, but people hear the beeping, assume the opener has failed and start reprogramming things that were fine.
• The antenna wire is tucked away or broken. The thin wire hanging from the head unit is the receiver's aerial; pushed up into the housing or snapped, it cuts range to a metre or two and makes coding hit and miss.
• The receiver has failed. If no remote works, including the ones that worked last week, and the wall button still runs the door, the radio board is the fault and coding will not bring it back.
• The opener predates rolling code. Older units and some Boss-era motors use fixed-code remotes with dip switches inside, and that kind of receiver cannot learn a modern ZT-07 or HT3 at all.

How do you clear a Steel-Line opener's remote memory?

Clearing the memory, which most people call a Steel-Line reset, is done at the same code button. Press and hold it until the LED goes out or the unit beeps, then release. The hold time varies by model, from a few seconds to around ten, so watch the LED rather than counting. Everything the opener has learnt is gone at that point: every hand remote, the ZTWB wall button and any car trained to it. Re-code each one with the short-press routine above, one learn cycle at a time.

Do this when a remote has been lost or stolen, when you move into a house and have no idea how many remotes the last owner handed out, or when the memory is full. It is a different thing from a full factory reset, which on some Steel-Line units also drops the travel limits and force settings and means re-teaching the door where the floor is. If your manual describes a reset involving the Set buttons or a power cycle, that is the full one, so read the whole page before starting it.

Can a Steel-Line opener connect to a smartphone app?

It depends on the model and its age. Steel-Line has offered smartphone control on newer openers, in some cases through a Wi-Fi or Bluetooth module that plugs into the head unit rather than being built in, and the range changes, so check the maker's page for your exact model or ask us before buying a module. An older SD800 or SD1200 without the socket for that module will not gain app control on its own, though retro-fit smart controllers from other makers can be wired to the wall-button terminals on most openers. Either way the app sits alongside the remotes rather than replacing them; visitors and a second car still need a coded transmitter, and the phone link stops working the moment the home Wi-Fi does.

When is it worth having us code it?

Coding a ZT-07 to an SD800 in a garage with a ceiling you can reach is a fair DIY job. It stops being one when the motor is up inside a roller door drum, when two remotes bought online both refuse to pair and you suspect the HT3 versus ZT-07 question, when the memory is full, or when the opener is old enough to be fixed code. We supply, install and service Steel-Line garage door openers across Perth, north and south of the river, and the vans carry the common Steel-Line remotes, so a coding job is usually done in one visit. To see what fits before calling, our range of replacement garage door remotes sorted by brand lists the Steel-Line units alongside the others. There is no call-out fee, same-day service is usually available, and we agree the price before touching the opener. If the receiver has died, we say so first, because no remote will fix it.
